Store data in Elastic search using PutElasticsearchJson

Jul 13, 2025 · 2 min read · python apache-nifi-2 vector-search elastic-search knn data-ingestion spring-boot bootstrap ·

Share on:

This article is a part of Vector Search using Spring AI Elastic Search and Apache Nifi 2

Now that we have data converted into json, we will store this in elastic search.

Use below docker-compose to start kibana and elastic search 8.

 1name: es-kibana
 2services:
 3  elasticsearch:
 4    image: docker.elastic.co/elasticsearch/elasticsearch:8.18.1
 5    ports:
 6      - 127.0.0.1:9200:9200
 7      - 127.0.0.1:9300:9300
 8    environment:
 9      - 'ES_JAVA_OPTS=-Xms1g -Xmx1g'
10      - 'discovery.type=single-node'
11      - 'cluster.routing.allocation.disk.threshold_enabled=false'
12      - 'xpack.security.enabled=false'
13    healthcheck:
14      test: ['CMD', 'curl', '-f', 'http://localhost:9200/_cluster/health?wait_for_status=green&timeout=10s']
15      interval: 5s
16      timeout: 10s
17      retries: 10
18  kibana:
19    depends_on:
20      - elasticsearch
21    image: docker.elastic.co/kibana/kibana:8.13.4
22    ports:
23      - 127.0.0.1:5601:5601
24    environment:
25      - ELASTICSEARCH_HOSTS=["http://elasticsearch:9200"]

Start container using

1docker compose -f elasticsearch.yml up

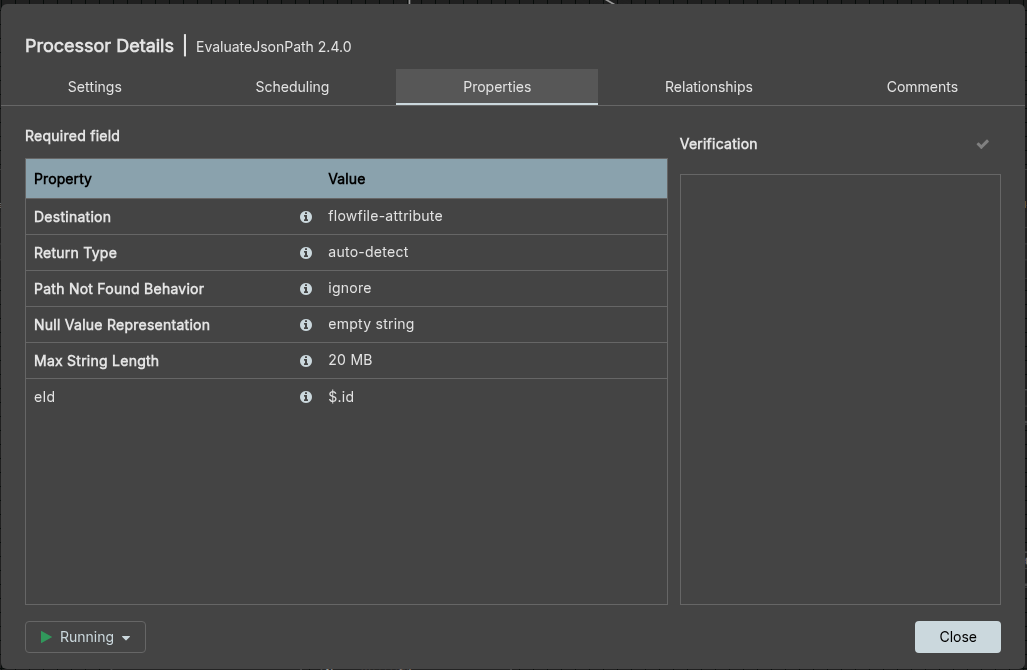

Now that we have json ready and elastic search server up we haver small modification to do to our Apache Nifi 2 processor such that instead of insert it all becomes upsert. We will use EvaluateJsonPath processor to read id from the json and assign it to flowfile attribute as shown below

Now when you run all Nifi Processor, data should get ingested and you should see the embeddings field along with other json data and mapping should show dense vector ad type when we check index mapping

1http get http://localhost:9200/amazon-products/_mappings | grep "embedding"

 1{
 2  "amazon-products": {
 3    "mappings": {
 4      "properties": {
 5        "@@timestamp": {
 6          "type": "date"
 7        },
 8        ...
 9        "embedding": {
10          "type": "dense_vector",
11          "dims": 3072,
12          "index": true,
13          "similarity": "cosine",
14          "index_options": {
15            "type": "int8_hnsw",
16            "m": 16,
17            "ef_construction": 100
18          }
19        }
20        ...
21
22      }
23    }
24  }
25}

In the next article we will write spring boot application using spring-ai to search for from the same elastic search index.
